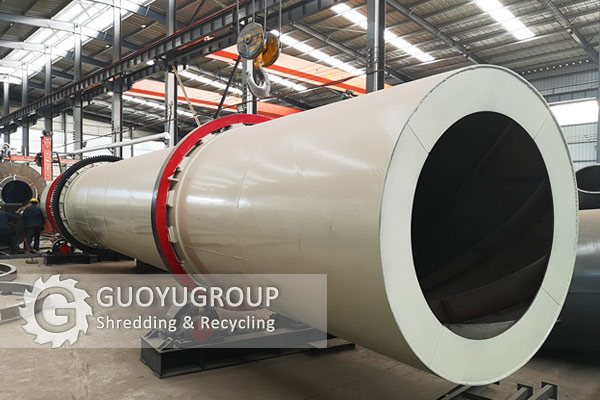

Wood Chip/Sawdust Rotary Dryer
Wood Chip & Sawdust Drying System For Sale
Introduction: Sawdust/wood Chip/Biomass Dryer refers to continuously feed the wet particle sawdust to dry pipe by rotary conveyor. The process of drying products in powder or granular form by evaporation of moisture in wet materials during conveying and dispersing of high speed hot steam. It is mainly composed of air heater, feeder, air drying pipe, cyclone separator and fan.
Application: Wood chips, shavings, sawdust, corn stalks, corn cobs, bamboo chips, cotton stalks, wheat stalks, sorghum stalks, ginkgo leaves, mulberry leaves, etc.
Capacity: 1--20t/h
| Model(m) | Diameter of drying pipe(mm) | Length of pipe(m) | Pente(°) | Speedr/min | Weight(t) | Power(kw) | Volume(m3) |
| Ф0.8*10 | Ф800 | 10 | 3-5 | 7.2 | 6.9 | 4 | 5.02 |
| Ф1.0*10 | Ф1000 | 10 | 3-5 | 6.73 | 7.5 | 5.5 | 7.85 |
| Ф1.2*12 | Ф1200 | 12 | 3-5 | 5.8 | 13.1 | 11 | 13.31 |
| Ф1.5*12 | Ф1500 | 12 | 3-5 | 4.8 | 22.3 | 15 | 21.2 |
| Ф1.8*14 | Ф1800 | 14 | 3-5 | 3.2 | 45.8 | 30 | 48.22 |
| Ф2.2*18 | Ф2200 | 18 | 3-5 | 3 | 50.3 | 37 | 70.43 |
| Ф2.4*20 | Ф2400 | 20 | 3-5 | 2.83 | 78.4 | 45 | 90.43 |
| Ф2.8*24 | Ф2800 | 24 | 3-5 | 2.59 | 97 | 75 | 147.8 |
| Ф3.0*20 | Ф3000 | 20 | 3-5 | 2.6 | 102 | 55 | 141.3 |
| Ф3.0*25 | Ф3000 | 25 | 3-5 | 2.6 | 110 | 75 | 176.7 |
Advantage of Biomass Dryer
1. good sealing, low energy, high efficiency
Connection between the input/output and the drying pipe sealed by adjustable scale-like board.The heat loss in the cylinder decreases greatly, and the fuel consumption is reduced directly.
2. Dry along the flow with low outlet temperature.High thermal efficiency
The rotary dryer adopts the method of down flow drying. The smoke and wet material enter the drying equipment from the same side. High temperature flue gas can be used to obtain high evaporation intensity
3. Advanced structure, the drying pipe is not sticky
The new internal structure of the dryer enhances the cleaning and heat transfer of the dispersed material and eliminates the sticking of the inner wall of the drying pipe
4. Stable heating source, good drying quality
It can be used as heat source in pulverized coal combustion furnace or fluidization furnace.
