Scrap Metal & Car Shredding Systems

1- Metal Shredder: The main function of the metal shredder is to squeeze large pieces of metal materials and large-diameter drum metal materials that are inconvenient to transport through the shear of the metal shredder, and tear them into pieces that meet the requirements. The machine consists of a shredding blade group, a bearing box, a box bracket, a feeding system, a power system, and an electrical control system.
2- Application: Metal waste comes from the metal-processing industry, automotive industry, electronics industry, waste industry or commercial production.
3- Power: 15kw-160kw
4- Capacity: 5-60t / h

MODEL GY-2600 GY-1900 GY-1500 GY-1200 GY-1000 GY-600
Spindle Power(kw) 4-160*2 4-90*2 4-45*2 4-37*2 4-30*2 4-15*2
Spindle Speed(r/min) 16-18 14-16 14-16 18-20 18-20 18-20
Capacity 25-60 10-25 8-18 6-15 5-10 2-5
Conveyor Power(kw) 3-4 3-4 3-4 / / /
Blade Core No.(PCS) 40 40 30 28 30 26
Blade Core Dia(mm) Φ720 Φ560 Φ530 Φ372 Φ360 Φ260
Broken Particle Size(cm) 3-10 3-10 3-10 3-10 3-10 3-10
Silo Size(m) 2.5*1.4 2.3*2 2*2 1.4*1 1.2*1 0.82*0.9
L*W*H(m) 8.2*4*4.3 8*2.5*2.4 4*1.7*2.4 3.2*2*1.9 3*2*1.9 2.6*2*1.9
Weight(t) 36 15 12 6 5 2.5

Typical Applications for Cars and Metals Shredding

  • Metal Shavings

  • Mixed Scrap

  • Sheet Metal Waste

  • Car Bodies

  • Engine Blocks

  • Alloy Rims

  • Aluminum Scrap

  • White Goods

  • Aluminum Blocks

Different Cutter Blade Structure To Choose

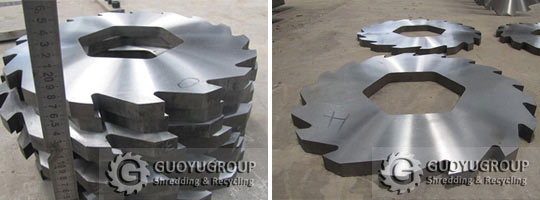

  • Item: non-detachable blade
    Material: 9SiCr
    Characteristic: stand wear and tear
    Service life: 12 month(normally, our warranty keep 4-5 months longer than other supplier)

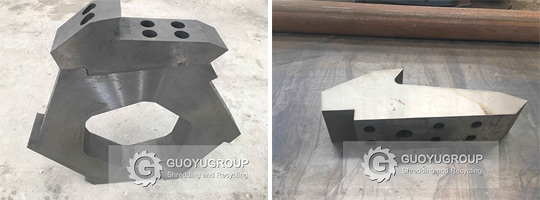

  • Item: dismountable blade
    Material: 9SiCr
    Characteristic: blade should be replaced and reduce cost.
    Service life: 12 month(normally, our warranty keep 4-5 months longer than other supplier)

How to Choose the Proper Blade of Tire Shredder?

"Different blades structure is adopted according to the requirements of materials and finished products. The proper shaft and shear will also be equipped. We will help you to choose a proper blade of tire shredder to meet your different requirement from the below."

  • Integrated structure

  • Assembly structure

  • SW type structure

  • VZ type structure

  • Pineapple type structure

  • SPR type structure

Do You Still Want to Learn Shredding Solution for Other Materials?

The proper shaft and shear will be equipped into industrial shredder according to different materials. Metal? Timber? Glass? Plastic? Organic? Biomass? Paper? Textile? E-waste? Cable? Foam? Or others? We always have the best solution for your business and materials. There is nothing we can't shred.
