1-Timber Crane:This machine has different specifications with reach length from 3.8 meters to 8.5 meters, the aircraft has small size, light weight flexible operation and good mobility, which can be used in many ways.
2- Application Materials:(Dress different grasps) logs, Square wood, broken wood, branches, sugar cane, straw, sand, steel, pasture, household waste, industrial waste and other bubble bulk.
3- Power:15-140HP | Lifting capacity:400-800kg
Model | 3.8M | 4M | 4.6M | 5.3M | 6.3M | 7.0M | 8.5M |
Lifting Capacity(kNm) | 18 | 23 | 23 | 30 | 28 | 48 | 45 |
Rotation Torque(kNM) | 3 | 4.4 | 4.4 | 8.8 | 8.8 | 16 | 16 |
Swivel | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
Reachable Range(m) | 3.8 | 4 | 4.6 | 5.3 | 6.3 | 7.0 | 8.5 |
Telescopic Stroke Length | / | 0.6 | / | / | 1.1 | 1.3 | 3 |
Recommended Velocity | 10-35 | 20-50 | 20-50 | 20-50 | 20-50 | 40-70 | 40-70 |
Working Pressure(bar) | 175 | 175 | 175 | 175 | 175 | 190 | 190 |
Weight(kg) Including | 371 | 551 | 581 | 650 | / | / | / |
Weight(kg) Including | 392 | 392 | 572 | 672 | 722 | 900 | / |
Weight(kg) Including | / | / | / | 715 | 765 | 945 | 985 |
Weight(kg) Including | / | / | / | / | 800 | 980 | 1020 |
Lifting Capacity kg/ | 475 | 475 | 475 | 565 | 440 | 720 | 520 |

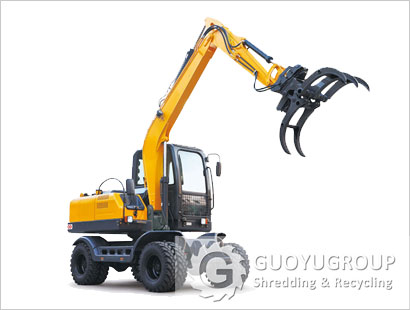

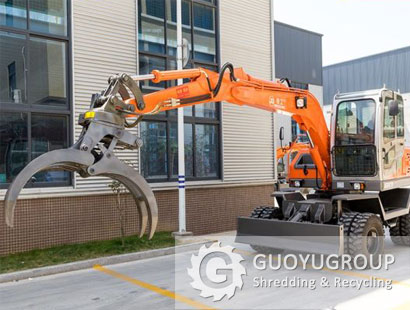

Timber crane’s arm and grapple can be rotated 360 degrees, the forearm can extend, shrink, grab wood and other items. The manipulator can rely on the rear axle of the tractor as the power output to drive the hydraulic pump as the hydraulic power source. If the tractor, the automobile and other transportation vehicles have their own hydraulic power, they can be connected randomly and have high universality and low use cost.

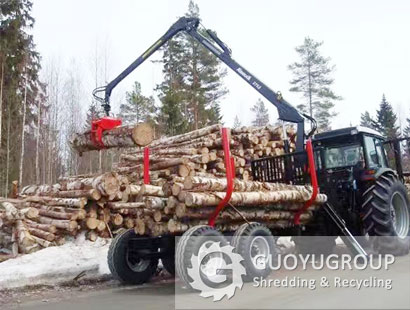

It can be installed on a variety of platforms, such as agricultural four-wheeled trucks, agricultural tricycles, tractors and other vehicles. It can also be fixedly installed on the wood crusher, shredder, garbage crusher, baler and other machinery and equipment to have the feeding operation. And it can be installed in the farms, large production lines and other workshops at the top to meet the automation of production lines. The timber crane machine can improve the safety and efficiency of manual loading and unloading in the forest area when harvesting and transport.
1. Arm can be 360 ° rotation, full-time work without dead ends, flexible action, easy operation.
2. Manipulator can be fully folded, easy to transport, workingand parking in a narrow section.
3. From human loading and handling into mechanization,ithas greatly saved manpower resources. A device can replace 3-6 workers, which can save the cost of the device itself in a year.
4. This series of grasping wood machine hydraulic transmission, can choose diesel locomotive or motor as a hydraulic power source according to the place.It uses imported hydraulic components of the original leak-free technology. And the unique multi-hand control valve, installing low-voltage electronic control device on the basis of the original imported manual multi-way valve, makes the device can be remote controlled as well as manual operated, which makes the device meet different special occasions.
